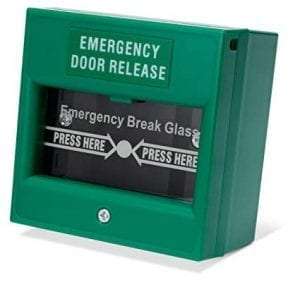

Break glass units-Access Control

Quick response Micro-Switch
Single gang
Single Pole
Compatible with siren or buzzer
Hinged protective cover

Category: Uncategorized Tag: Break glass units-Access Control

Break glass units-Access Control

Glass broken button, also called the emergency push button, it is a series in the electric lock loop, to prevent the entrance guard system of card reader, push button or controller hardware failure inside personnel dozen don’t open the door. Locked in the room, when faced with the above situation to press the emergency push button and the lock power will be disconnected, the door is opened.

Features:

Use the Fireproof Material, Accord with the Safe Request

Sandblast Panel with Elegant Style

We will send Red color as default, if you need other color please feel free to connect us.

Specifications:

Dimensions:86Lx86Wx50H(mm)

Standard Structure:Fireproof Material, Easy to install

Current Rating:3A 36VDC Max

Output Contact:NONCCOM

Suitable for Door:Exit Door, Emergence Door

Operating temp:10~+55°C(14-131F)

Operating Humidity:0-95% (non- condensing)
